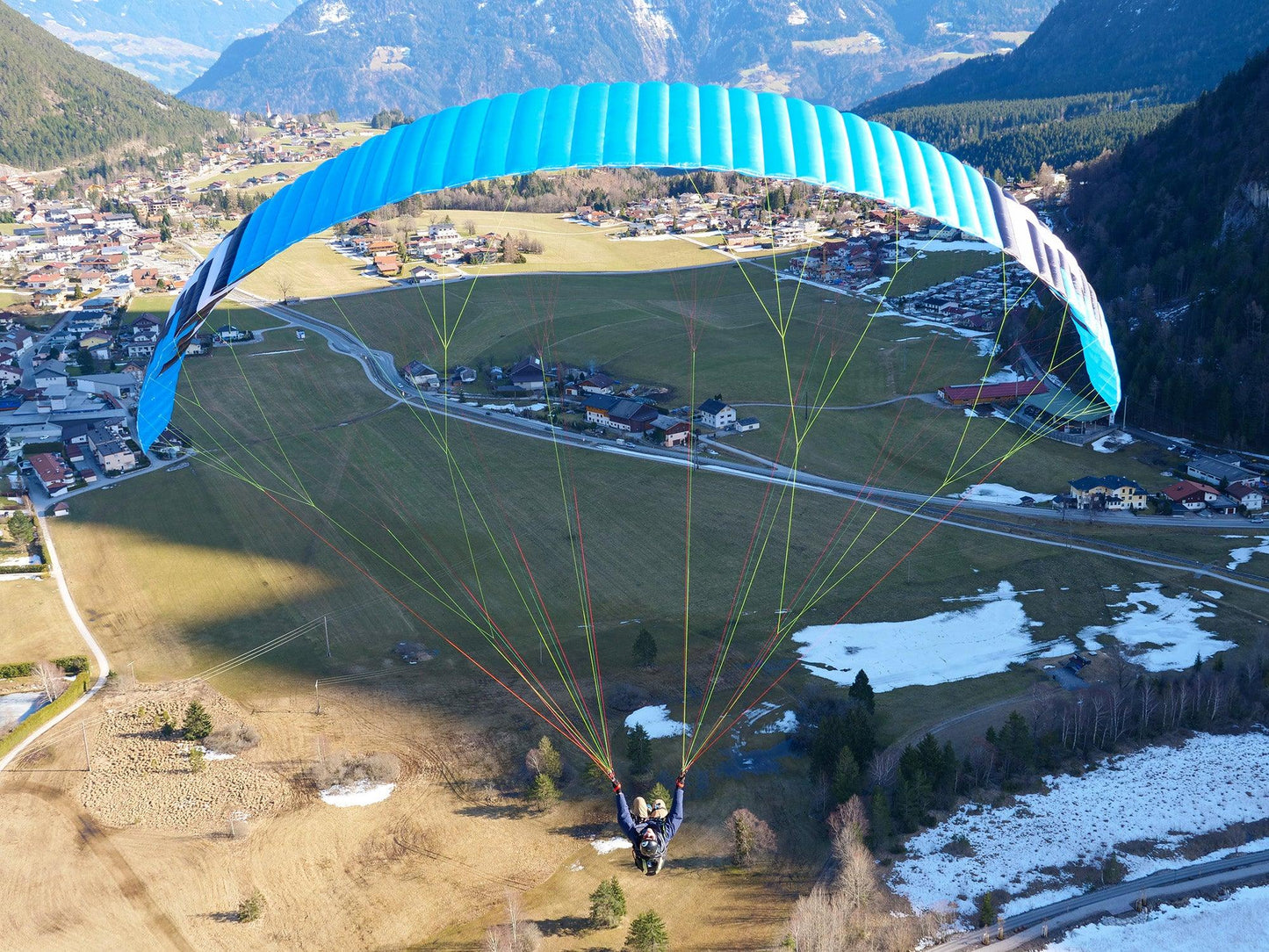

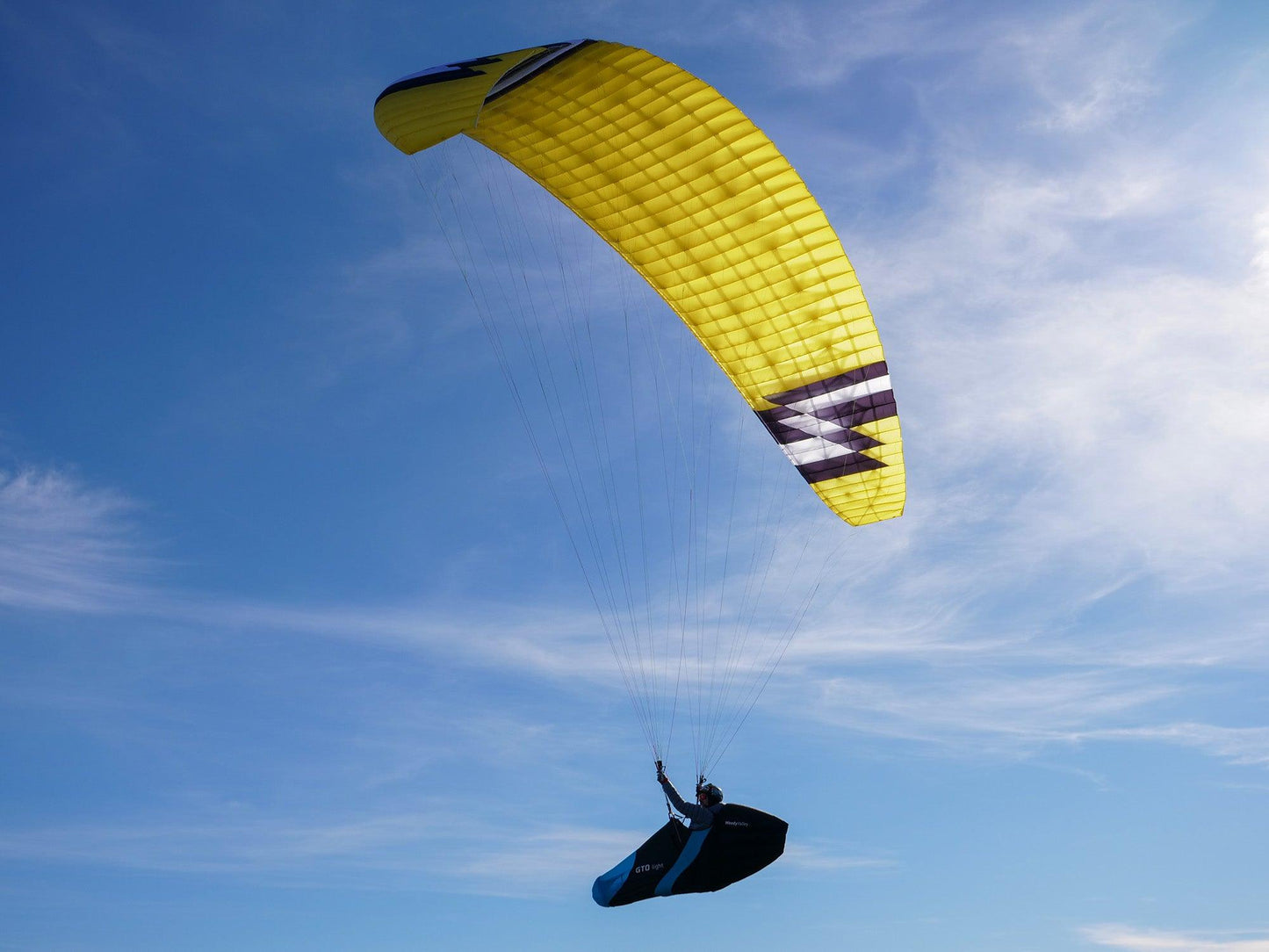

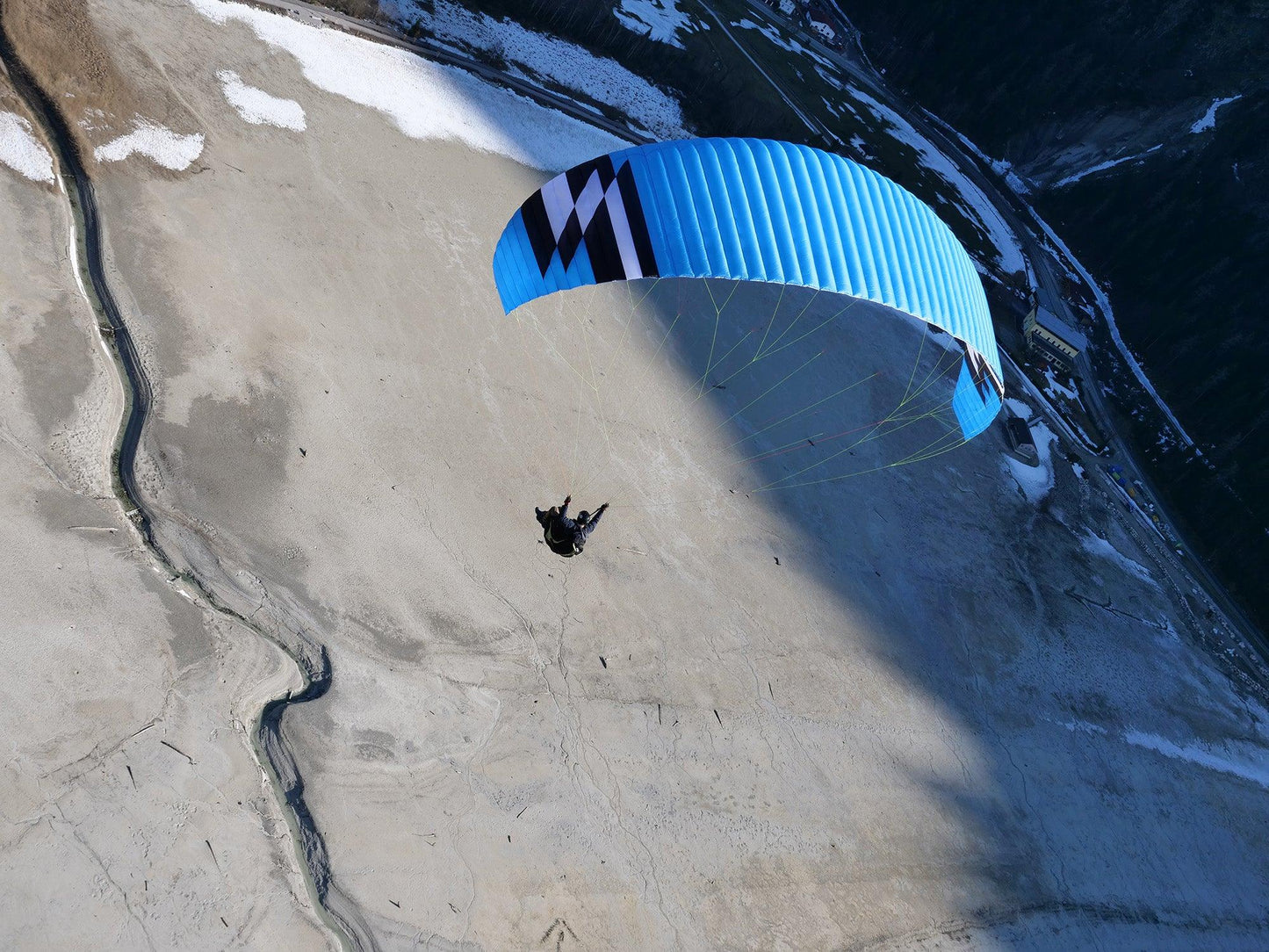

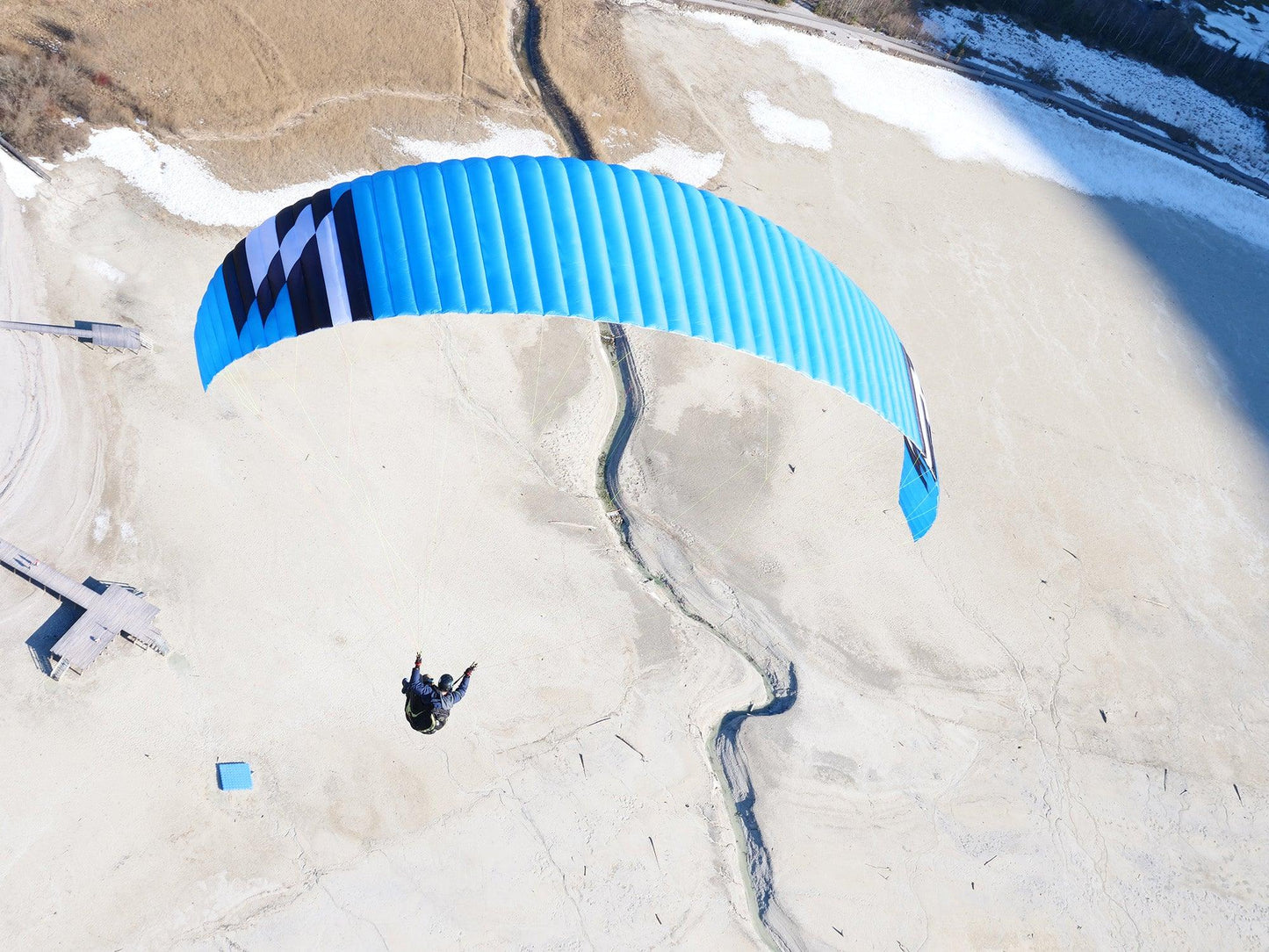

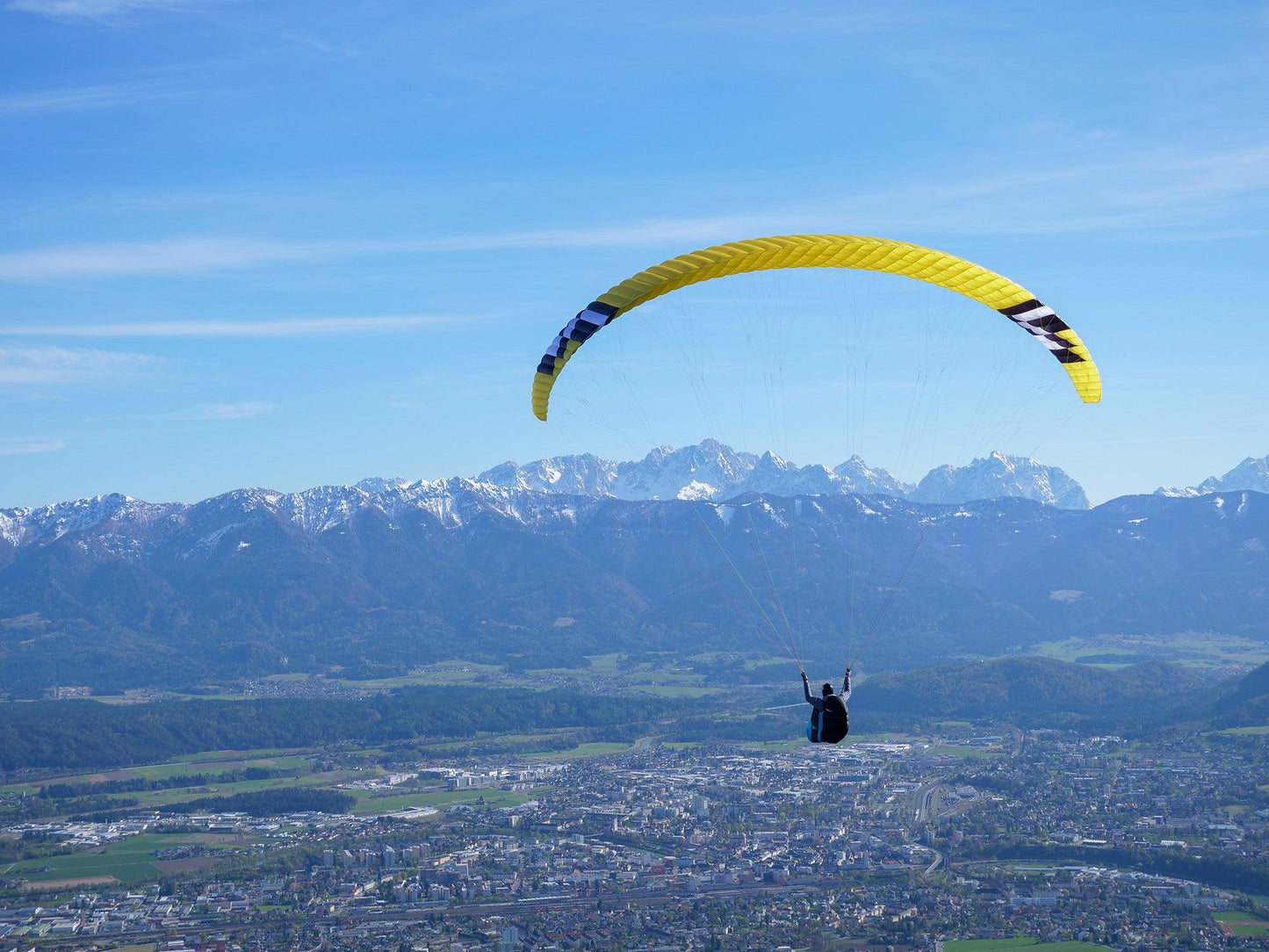

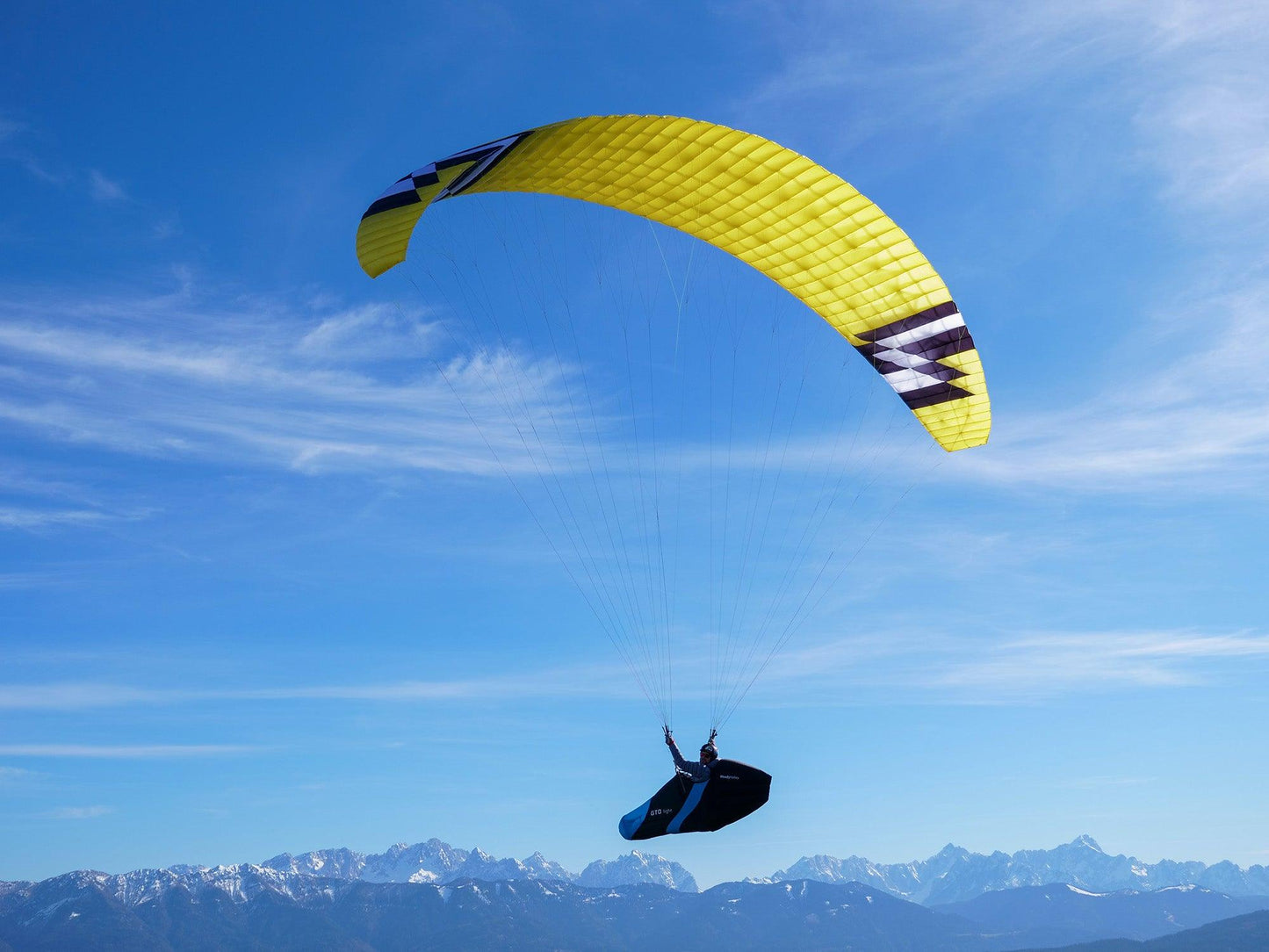

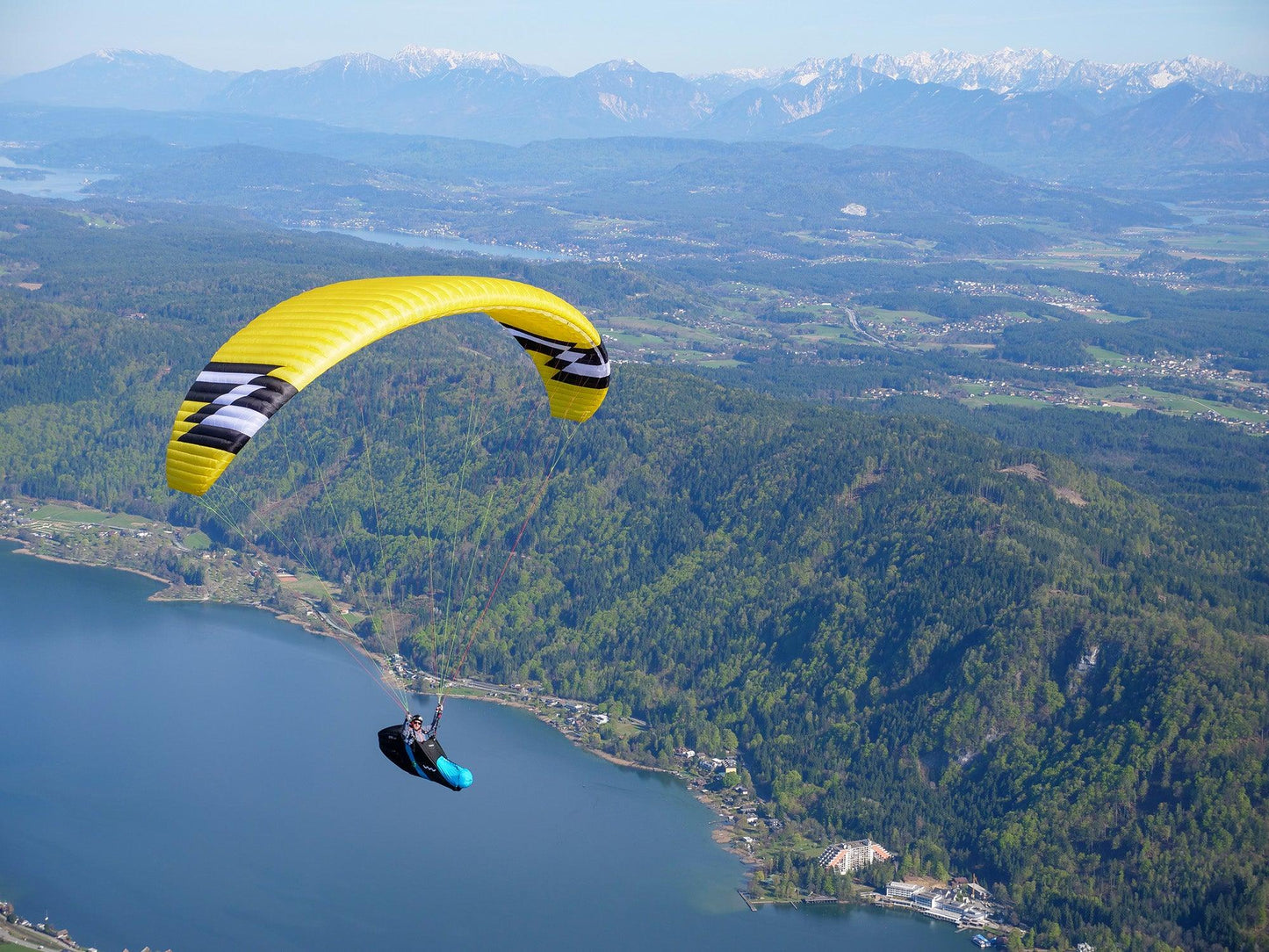

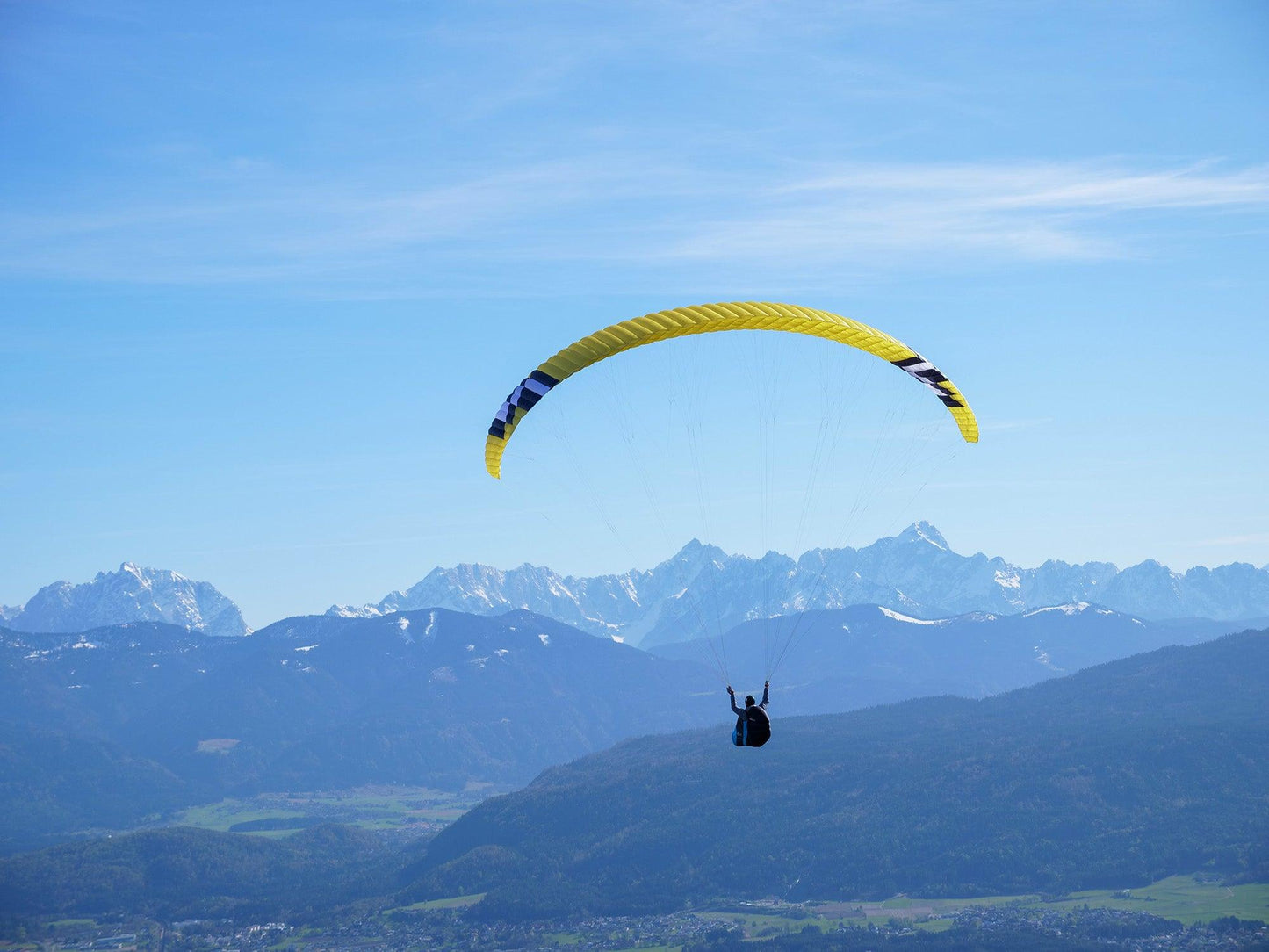

THE BEAT OF YOUR HEART!
The BEAT is the synthesis of several current concepts from our range. So he combines some of his brothers’ strengths.
At the request of many pilots, the BEAT has only robust, sheathed TECHNORA lines on the brakes and stabilo, which stand out clearly from the ground in their orange.
With this decision we follow our conviction that paragliding has to become easier again!
Despite the theoretically higher resistance of these somewhat thicker lines, we could not measure a performance disadvantage, on the contrary. Above all, this wing seems to benefit from its exceptionally clean finish.
The BEAT has a very high level of form stability due to its complex structure. This makes it fly extremely precise and gives excellent feedback!
BEAT DESIGNER’S NOTE
Our test team immediately liked the first BEAT prototype extremely well. It was love at first sight! The handling is perfectly balanced, the performance is convincing and he also behaved very well in the maneuvers. Once again we had the right feeling and a little bit of luck!
So we are very happy to surprise the pilots with this wing! With the BEAT we are now able to offer 5 B wings (in addition to 4 wings in the A class). With our wide range, we want to make sure that every pilot finds the right wing for himself.
Hannes Papesh
BEAT TECHNICAL FEATURES
With 56 cells and a flat aspect ratio of 5.3, the BEAT lines up between TENOR and MAESTRO. Technically it is a somewhat slimmed down MAESTRO with a few pinches of ALLEGRO (3 main lines), a little FANTASIA (intake) and of course SYMPHONIA (being extremely well balanced).
BEAT TECHNICAL DATA
|
BEAT |
|
|||||||
|
size |
18 |
20 |
22 |
23 |
24 |
26 |
|
|
|
number of cells |
56 |
56 |
56 |
56 |
56 |
56 |
|
|
|
projected span |
m |
8,29 |
8,74 |
9,18 |
9,4 |
9,61 |
10,02 |
|
|
projected area |
m² |
17,74 |
19,72 |
21,73 |
22,77 |
23,79 |
25,89 |
|
|
projected aspect ratio |
3,88 |
3,88 |
3,88 |
3,88 |
3,88 |
3,88 |
|
|
|
flat span |
m |
10,51 |
11,07 |
11,63 |
11,9 |
12,17 |
12,69 |
|
|
flat area |
m² |
20,8 |
23,11 |
25,48 |
26,7 |
27,9 |
30,37 |
|
|
flat aspect ratio |
5,31 |
5,31 |
5,31 |
5,31 |
5,31 |
5,31 |
|
|
|
line length |
m |
6,24 |
6,57 |
6,9 |
7,07 |
7,22 |
7,53 |
|
|
total line length |
m |
250 |
260 |
270 |
280 |
290 |
300 |
|
|
maximum chord |
m |
2,45 |
2,58 |
2,71 |
2,77 |
2,84 |
2,96 |
|
|
minimum chord |
m |
0,66 |
0,7 |
0,73 |
0,75 |
0,77 |
0,8 |
|
|
weight |
kg |
4,3 |
4,6 |
4,9 |
5,15 |
5,2 |
5,5 |
|
|
certified weight range |
kg |
50-75 |
65-85 |
75-95 |
83-103 |
90-110 |
105-130 |
|
|
certification (EN/LTF) |
B |
B |
B |
B |
B |
B |
|
|
|
ext. weight range motor |
kg |
50-130 |
65-130 |
75-170 |
83-170 |
90-170 |
155-170 |
|
|
certification DGAC |
ok |
ok |
ok |
ok |
ok |
ok |
|
|
|
material |
Porcher Skytex 32 |
|||||||
|
risers |
R06 (3+1) |
|||||||
|
riser length |
mm |
500 |
540 |
560 |
560 |
560 |
560 |
|
|
speedway |
mm |
150 |
150 |
180 |
180 |
180 |
200 |
|
BEAT WEIGHT RANGES
BEAT COLORS
SCOPE OF DELIVERY
Glider, Harmonica concertina packing bag, repair material
